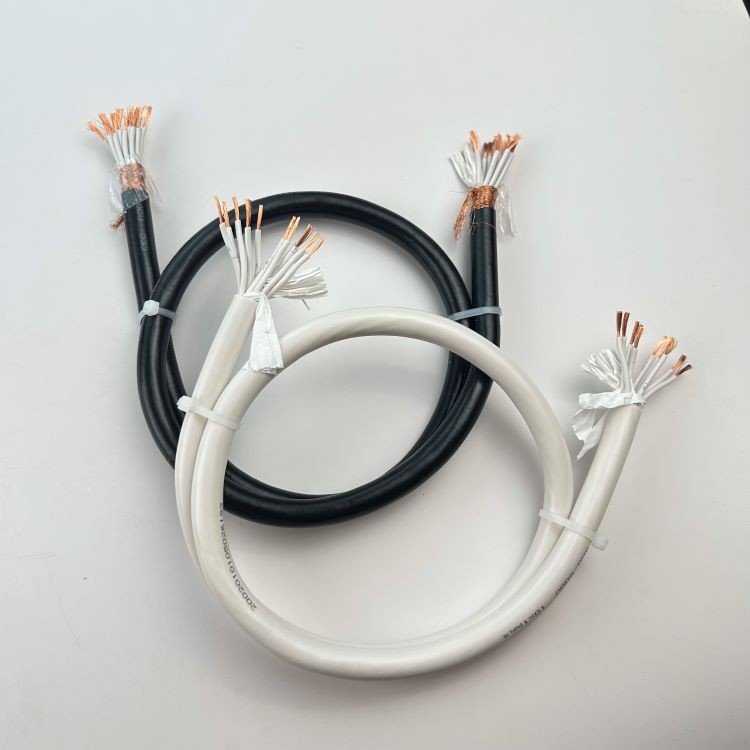

Product Parameters
|
Place of Origin: |
ZheJiang,China |
Brand Name: |
TianHeJiLong |
|
Product name: |
Control cable |
Core: |
10core |
|
Standard: |
CCC |
Application |
electrical equipment |
|
Cable Structure: |
10C*1.0mm² |
Conductor Resistance: Max(Ω/Km,20℃) |
≤20 |
|
Conductor Material: |
Copper |
Conductor Type: |
Stranded |
|
Certification: |
CCC CE |
Conductor structure: |
32*0.2mm |
|
Insulation Material: |
PVC |
Jacket Material: |
PVC |
|
Diameter: |
13.2±0.2mm |
Color : |
White,Black... |
|
Rated temperature: |
-20 ℃-- + 70 ℃ |
Voltage: |
300/500V |
Quick detail
The full name of RVV cable is copper core PVC insulated PVC sheathed flexible cable, also known as lightweight PVC insulated poly, commonly known as soft sheathed wire, which is a type of sheathed wire.
RVV wires and cables are two or more RV wires with an additional layer of sheath. RVV cable is the most commonly used cable in weak current systems, with an indefinite number of core wires, two or more, and a PVC sheath on the outside. There are no special requirements for the arrangement of core wires.
The letter R represents the flexible wire, and the letter V represents the insulation material polyvinyl chloride (PVC).
For example, RVV2 * 0.5 is two wires of 0.5 square millimeters with an outer sheath. The purpose of the sheath is to protect the inner protective layer of the cable from mechanical damage and chemical corrosion; 2. Enhance the mechanical strength of the cable. The main purpose of RVV cables is to be used as power lines, control lines, and signal transmission lines for electrical appliances, instruments, electronic equipment, and automation devices. Specifically, they can be used for anti-theft alarm systems, building intercom systems, etc.
Description
Size and Dimensions – 10 core
|
(No./mm²) |
Conductor structure(No./mm) |
Insulation diameter(mm) |
Sheath thickness (mm) |
Cable OD.(mm) |
Conductor Max. Resistance at 20℃ (ohm/km) |
|
10*0.08 |
7*0.12 |
1.15 |
0.8 |
6.6 |
247 |
|
10*0.12 |
7*0.15 |
1.3 |
0.8 |
7.2 |
158 |
|
10*0.20 |
12*015 |
1.40 |
0.8 |
7.6 |
92.3 |
|
10*0.3 |
16*0.15 |
1.80 |
0.8 |
9.2 |
69.2 |
|
10*0.5 |
28*0.15 |
2.30 |
0.8 |
11.2 |
39 |
|
10*0.75 |
42*0.15 |
2.50 |
1.0 |
12.4 |
26 |
|
10*1.0 |
32*0.2 |
2.60 |
1.2 |
13.2 |
19.5 |
|
10*1.5 |
30*0.25 |
3.10 |
1.4 |
15.6 |
13.3 |
|
10*2.5 |
49*0.25 |
3.80 |
1.5 |
18.6 |
7.98 |
|
10*4.0 |
56*0.28 |
4.30 |
1.7 |
21.0 |
4.95 |
|
10*6.0 |
84*0.29 |
4.80 |
1.7 |
23.0 |
3.3 |
