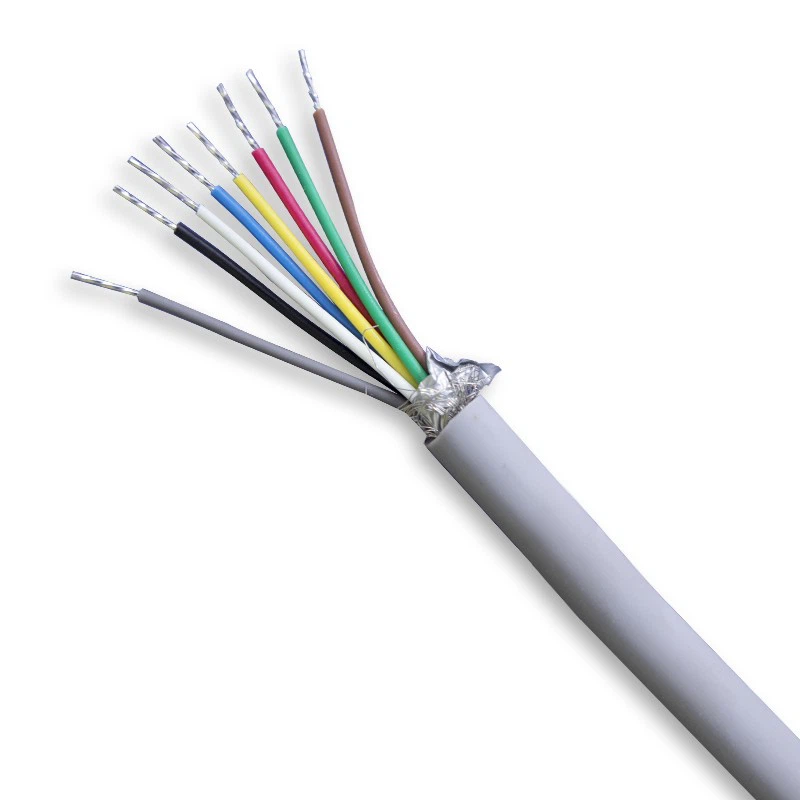

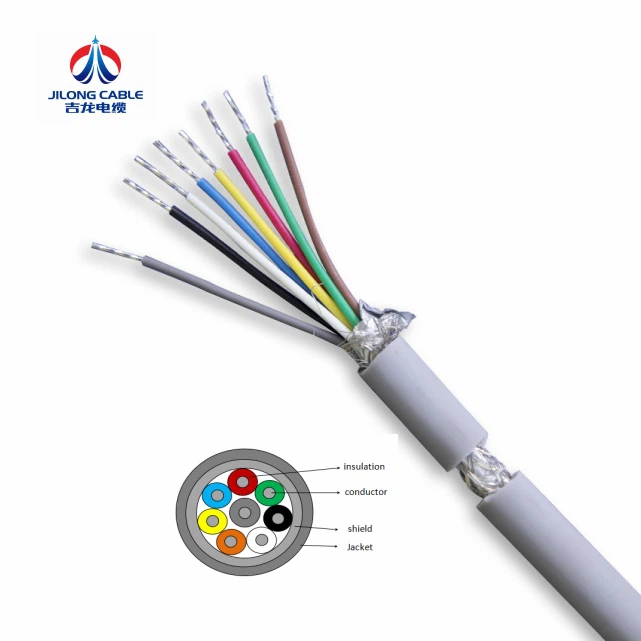

Ground Shielded Control Cable

21.2

21.3~1

Details:

Shielded cables are commonly used in situations where high fidelity signals need to be transmitted to prevent the effects of electromagnetic interference and crosstalk. They are mainly suitable for medical equipment, audio transmission, automotive electronics, aerospace, and other fields.
Shielded cables use special shielding structures that can effectively resist electromagnetic interference, crosstalk, and radio frequency interference, improving the accuracy and stability of signal transmission. At the same time, shielded cables have high stability and reliability, and a long service life.

Send Inquiry

Chat Now

Download

Description

Technical Parameters

Product Parameters

Place of origin:	ZheJiang,China	Brand Name:	TianHeJiLong
Product name:	Control cable	Application:	control and intercom devices
Cable Structure:	870.2*6.8	Core:	8core
Conductor Material:	Tinned copper	Conductor Type:	Stranded
Insulation color:	Red,black,blue,yellow,green....	Conductor Structure:	7*0.2
Insulation Material:	PVC	Jacket Material:	PVC
Wrapping Material:	aluminum foil	Shielding Material:	Tinned copper
Diameter:	6.8±0.2mm	Color :	Grey
Rated temperature:	- 20 ℃ to + 80 ℃	MOQ:	3000 Meters

What is RVVP Control Cable?

RVVP is a soft conductor PVC insulated cable with an additional shielding layer and PVC sheath. Copper core PVC insulated shielded PVC sheathed soft cable, also known as electrical connection anti-interference soft cable.

The "P" in RVVP refers to shielding, which means that the RVVP wire has a shielding layer, and RVVP has stronger anti-interference ability against external signals.

The rated voltage is 300/300V, and the commonly used number of wire cores is 2-19 cores,

The commonly used wire core diameters are: 0.2 mm², 0.3 mm², 0.5 mm², 1 mm², 1.5 mm², 2.5 mm², and 4 mm².

43005

43008

43011

43014
